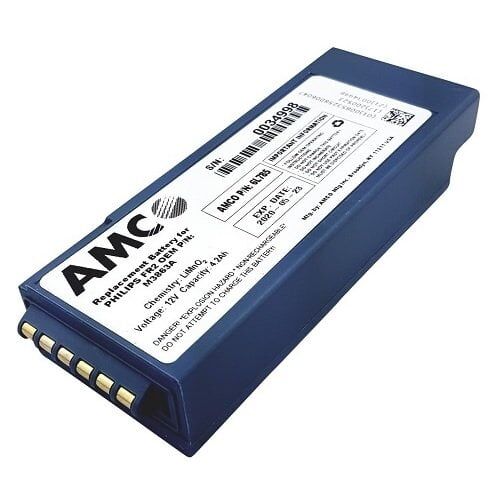

Philips FR2 AED Generic Battery

Philips brand AEDs operate on batteries only. Always have a fully charged spare.

The Philips Lithium Battery Pack is the replacement disposable lithium manganese dioxide battery for your Philips HeartStart FR2 or FR2+ AED. This battery pack has a shelf-life of up to five years from the date of manufacture so having an extra battery on hand is always a good idea. This Philips battery pack will last up to five years in your FR2 or FR2+ and it comes with a four-year manufacturer’s warranty. According to performance data from Philips, a new FR2/FR2+ Battery Pack should provide up to 300 shocks or 12 hours of patient monitoring capability. Detailed technical specifications are listed below.

How can you tell if your device needs a fresh battery? Look at your AED’s status indicator in the upper right hand corner. A flashing red “X” indication means the battery power level is low. A solid red “X” means the battery is not useable or completely depleted. Or, you can initiate a battery test to check its power status anytime by removing the battery pack, reinserting it, and choosing NEXT on the LCD screen and then BATTERY HISTORY.

Installation Instructions:
• The Philips HeartStart FR2/FR2+ Battery Pack is installed in the same manner as any other battery pack for this AED.
• Squeeze the yellow latch on the old Philips HeartStart FR2/FR2+ Battery Pack to release and remove it from the AED.
• Make certain neither the electrode pads or optional ECG Assessment Module are connected to the AED.
• Hold the new Philips HeartStart FR2/FR2+ Battery Pack by the yellow latch and carefully slide it into the battery cavity at the top of the AED.
• Slide the new Philips HeartStart FR2/FR2+ Battery Pack into the AED until you feel and hear it click into place.

Once the battery is inserted, your Philips HeartStart FR2/FR2+ AED will automatically turn on allowing you to initiate a device self-test or perform other functions within its menu system. You’ll know that your Philips HeartStart FR2/FR2+ AED is ready for use when you see the LCD hourglass symbol flashing in the device’s self-test indicator window.

Technical Specifications:
• Battery type: 12 Volt DC, 4.2 Ah, lithium manganese dioxide. Disposable, long-life primary cell.
• Capacity: When new, a minimum of 300 shocks or 12 hours of operating time at 77 degrees F (25 degrees C).
• Shelf life (prior to installation): Usually 5 years from date of manufacture when stored under standby environmental conditions in original packaging.
• Standby life (after installation): Usually 5 years. >4 years when stored under standby environmental conditions (battery installed, FR2+ unused).
• Storage temperature: 32 degrees to 109 degrees F (0 degrees to 43 degrees C).
• Shipping temperature: -4 degrees to +140 degrees F (-20 degrees to +60 degrees C).
• Battery limitations: Per battery labeling, never charge, short circuit, puncture, deform, incinerate, heat above 60 degrees C, or expose contents to water.
• Remove the Philips HeartStart FR2/FR2+ Battery Pack from your AED when discharged.
